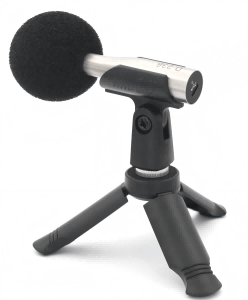

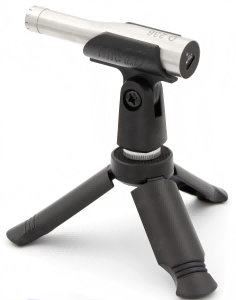

D236 Measurement microphone
The D236 is a newly launched plug-and-play 1/2-inch digital microphone from the MicW series. It connects to computers, mobile devices, and more via USB Type-C, enabling driver-free operation for acoustic measurement and audio recording.
The D236 compliant with IEC61672 Class 2 standards, is ideal for professional acoustic measurements, mobile recording, portable noise monitoring, and more.

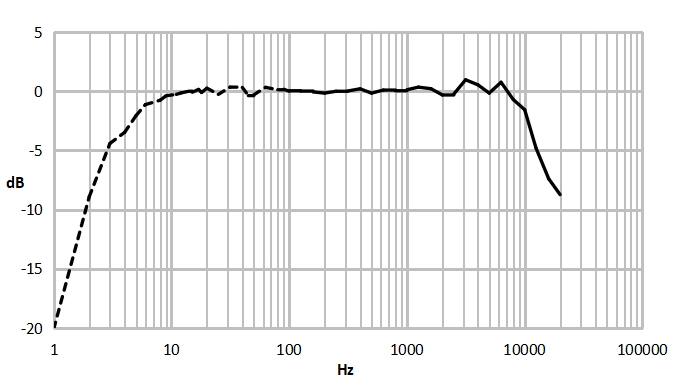

Typical Free-field Frequency Response
Specification：
Type
Electret Capacitor Microphone
Sound Field Type
Free Field
Directionality
Omnidirectional
Diameter
1/2-inch
Sensitivity
Noise Level
Cartridge Sensitivity
Cartridge Polarization voltage
0V (Prepolarized)
Frequency Response
10 Hz~20 kHz (with correction data)
Self-generated Noise (Acoustical)
Maximum Sound Pressure Level (Acoustic)
USB Audio
XMOS multicore processor, USB Audio Class 2 (UAC2), 16/24/32-bit streaming, Driverless for Mac OS / iOS / Linux / Android
Sampling Rate
48 kHz @ 24-bit
Operating Temperature Range
-20 °C ~ 50 °C
Operating Humidity Range
0 ~ 95 %RH
Dimensions
Ø 19 x 93 mm
Output Connector
USB-Type C
Weight
62.9 g
Body Material
-29.5 ± 3.0 dBFS (94 dBSPL@1 kHz)
-100.3 dBFS(A)
-28.0 dB re 1 V/Pa (39.8 mV/Pa)
23.0 dBA
120.0 dB (Typ. THD+N≤3 %)
Stainless steel
Download information:
D236 user manual
